Composition Dynamic Controller (CDC)
The Composition Dynamic Controller (CDC) is the execution engine of Krateo. It is a specialized operator, instantiated by the Core Provider, that manages the full lifecycle of Helm-based services.

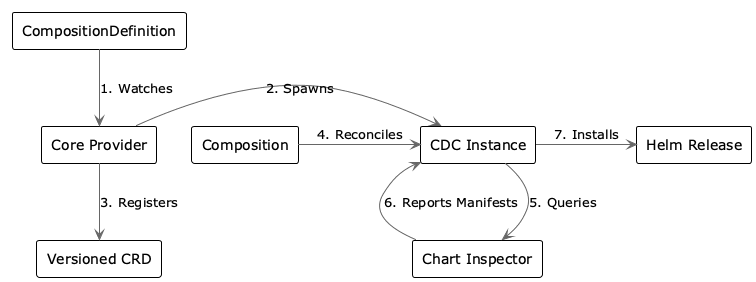

The Chain of Command​
To understand Krateo, it's essential to visualize the relationship between its core components:
- Core Provider (The Manager): Watches for
CompositionDefinitionresources. When one is created, it generates a CRD and spawns a dedicated CDC instance. - CDC (The Worker): Watches for
Compositionresources (instances of the generated CRD). - Chart Inspector (The Safety Officer): Queried by the CDC to perform dry-runs of Helm charts, enabling precise RBAC generation and safety checks.
Blueprint vs. Instance​
Krateo separates the definition of a service from its actual usage.
| Concept | Resource | Purpose | analogy |
|---|---|---|---|
| Blueprint | CompositionDefinition | Defines what a service is (Helm chart, version, API group). | The Class / Architect's Plan |
| Instance | Composition | A specific, live deployment of that service with custom values. | The Object / The actual House |
Documentation​
| Document | Purpose |
|---|---|
| Workflow & Safety | Deep dive into Chart Inspector integration and RBAC auto-provisioning. |
| Values Injection & Pausing | How Krateo injects metadata into charts and manages graceful pausing. |
| Release Naming | Understanding how Helm release names are generated. |
| Telemetry | Metrics reference for CDC and unstructured-runtime. |
Technical Reference​
Environment Variables​
The CDC can be configured via environment variables in its Deployment. Many of these are automatically set by the Core Provider when it spawns the CDC instance.
| Name | Description | Default | Notes |
|---|---|---|---|
| Operational | |||
COMPOSITION_CONTROLLER_DEBUG | Enables verbose debug output. | false | |
COMPOSITION_CONTROLLER_WORKERS | Number of concurrent reconciliation workers. | 1 | |
COMPOSITION_CONTROLLER_RESYNC_INTERVAL | How often to force a resync of all resources. | 3m | |
KRATEO_NAMESPACE | Namespace where Krateo is installed. | krateo-system | |
URL_CHART_INSPECTOR | Endpoint for the Chart Inspector service. | http://chart-inspector...:8081/ | |
| Resource Scope (Auto-populated) | |||
COMPOSITION_CONTROLLER_GROUP | API Group of the resource to manage. | - | Set by Core Provider |
COMPOSITION_CONTROLLER_VERSION | API Version of the resource to manage. | - | Set by Core Provider |
COMPOSITION_CONTROLLER_RESOURCE | Plural name of the resource to manage. | - | Set by Core Provider |
COMPOSITION_CONTROLLER_SA_NAME | ServiceAccount name for the CDC pod. | - | Set by Core Provider |
COMPOSITION_CONTROLLER_SA_NAMESPACE | ServiceAccount namespace for the CDC pod. | - | Set by Core Provider |
| Helm Management | |||
HELM_MAX_HISTORY | Number of Helm release versions to keep. | 3 | |
COMPOSITION_CONTROLLER_SAFE_RELEASE_NAME | Appends UID suffix to release names. | true | Highly recommended |
| Retry Logic | |||
COMPOSITION_CONTROLLER_MAX_ERROR_RETRIES | Maximum number of retries on failure. | 5 | Set to 0 to disable |
COMPOSITION_CONTROLLER_MIN_ERROR_RETRY_INTERVAL | Minimum interval between retries. | 1s | |
COMPOSITION_CONTROLLER_MAX_ERROR_RETRY_INTERVAL | Maximum interval between retries. | 60s | |
| Observability (OTEL) | |||
OTEL_ENABLED | Enables OpenTelemetry metrics export. | false | |
OTEL_EXPORT_INTERVAL | Interval used to export OTLP metrics. | 30s | |
OTEL_EXPORTER_OTLP_ENDPOINT | OTLP endpoint for metrics export. | `` | |
COMPOSITION_CONTROLLER_METRICS_SERVER_PORT | Port for the internal metrics server. | - | Disabled if not set |
