eventsse

Streams events received from Krateo EventRouter using Server-Sent Events (SSE).

Summary​

  1. Overview
  2. Architecture
  3. API
  4. Examples
  5. Configuration

Overview​

Subscribed to the eventrouter service as event receiver.

  • patches the received event adding a label that references the composition to which the event belongs
  • stores the event both in an internal queue and in an etcd storage

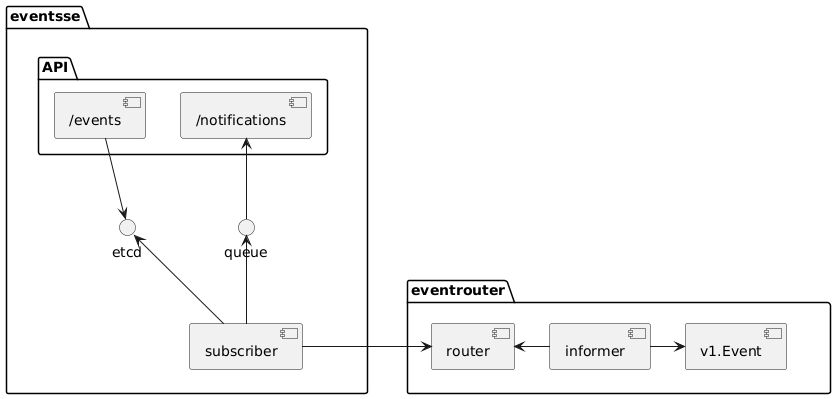

Architecture​

EventSSE Architcture

API​

This service exposes two main endpoints:

  • /notifications, which uses SSE to send events (either all events or only those belonging to a specific composition) to the client
  • /events, which returns the list of all events; eventually filtered for a specific composition

Check the /swagger/index.html url for more details about all the API.

Examples​

In the following examples $HOST is the address of your eventsse instance and $PORT it's listening port.

Receiving notifications​

$ curl -v "$HOST:$PORT/notifications

Listing last events​

$ curl -v "$HOST:$PORT/events

By specific composition :

$ curl -v "$HOST:$PORT/events/$COMPOSITION_ID

Configuration​

This service must be registered to the eventrouter (subscription) using a manifest like this:

apiVersion: eventrouter.krateo.io/v1alpha1
kind: Registration
metadata:
  name: eventsse
  namespace: demo-system
spec:
  serviceName: Eventrouter SSE
  endpoint: $HOST:$PORT/handle

where:

  • $HOST: is the address of your eventsse instance (i.e. http://eventsse-internal.demo-system.svc.cluster.local)
  • $PORT: is the listening port of your eventsse instance
